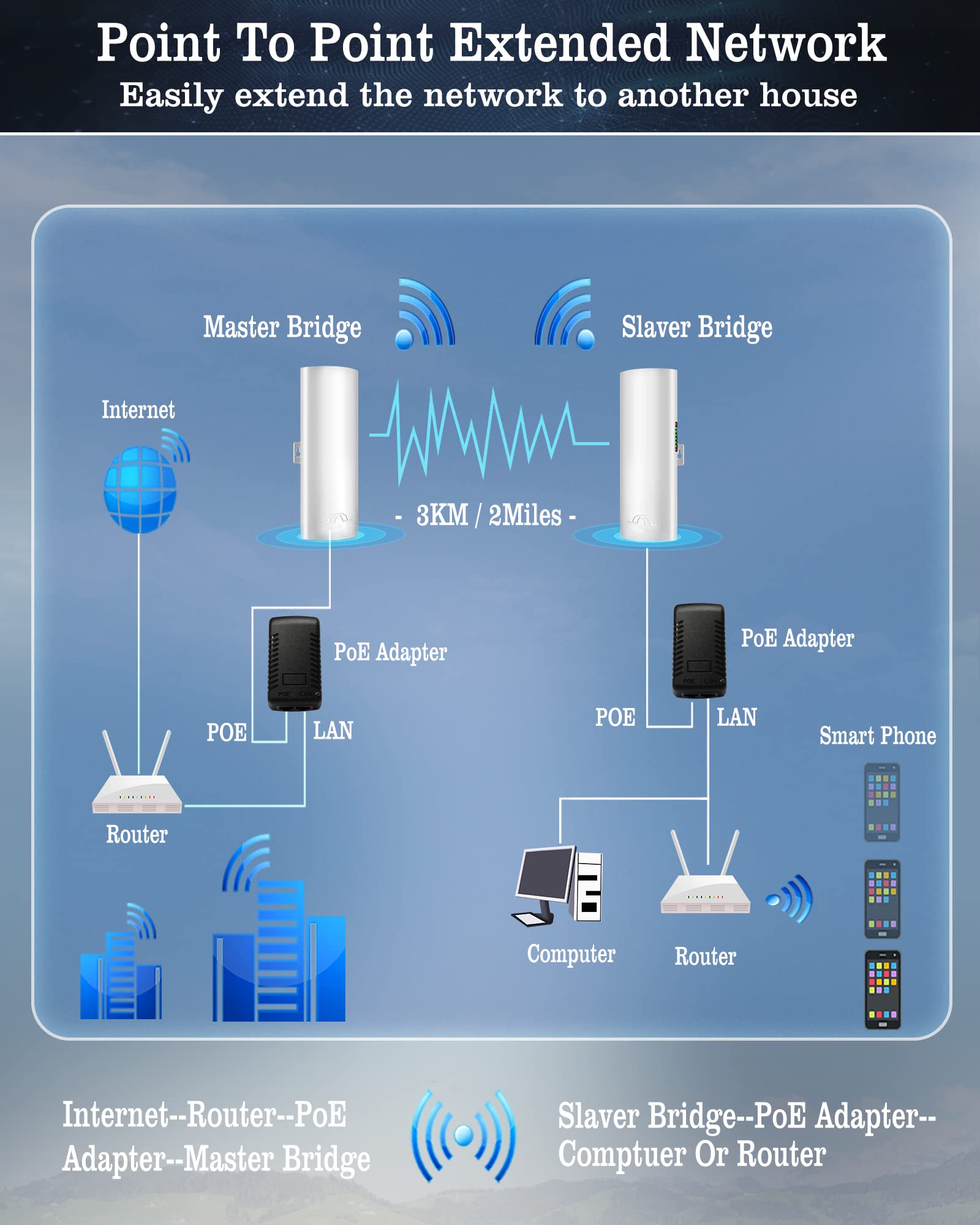

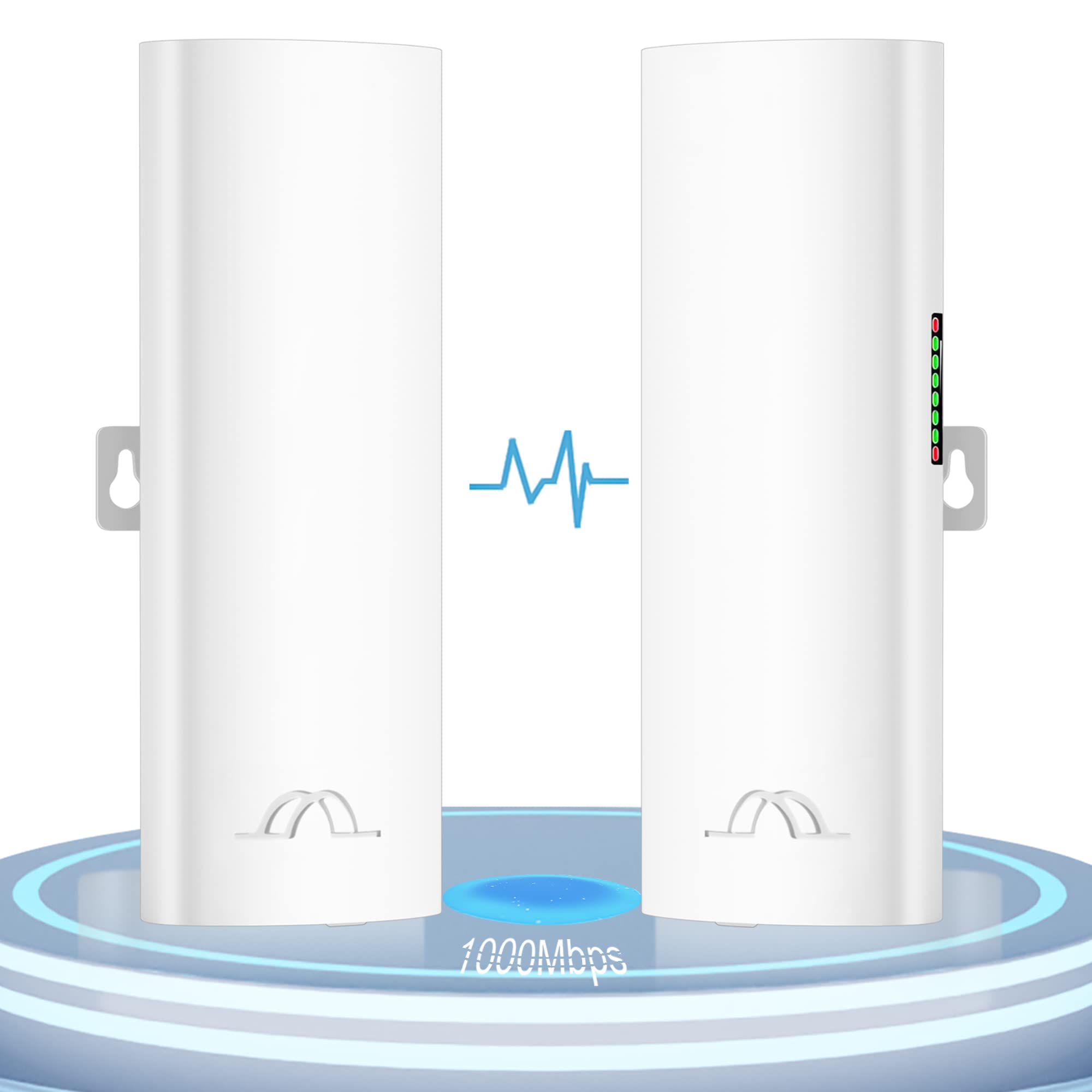

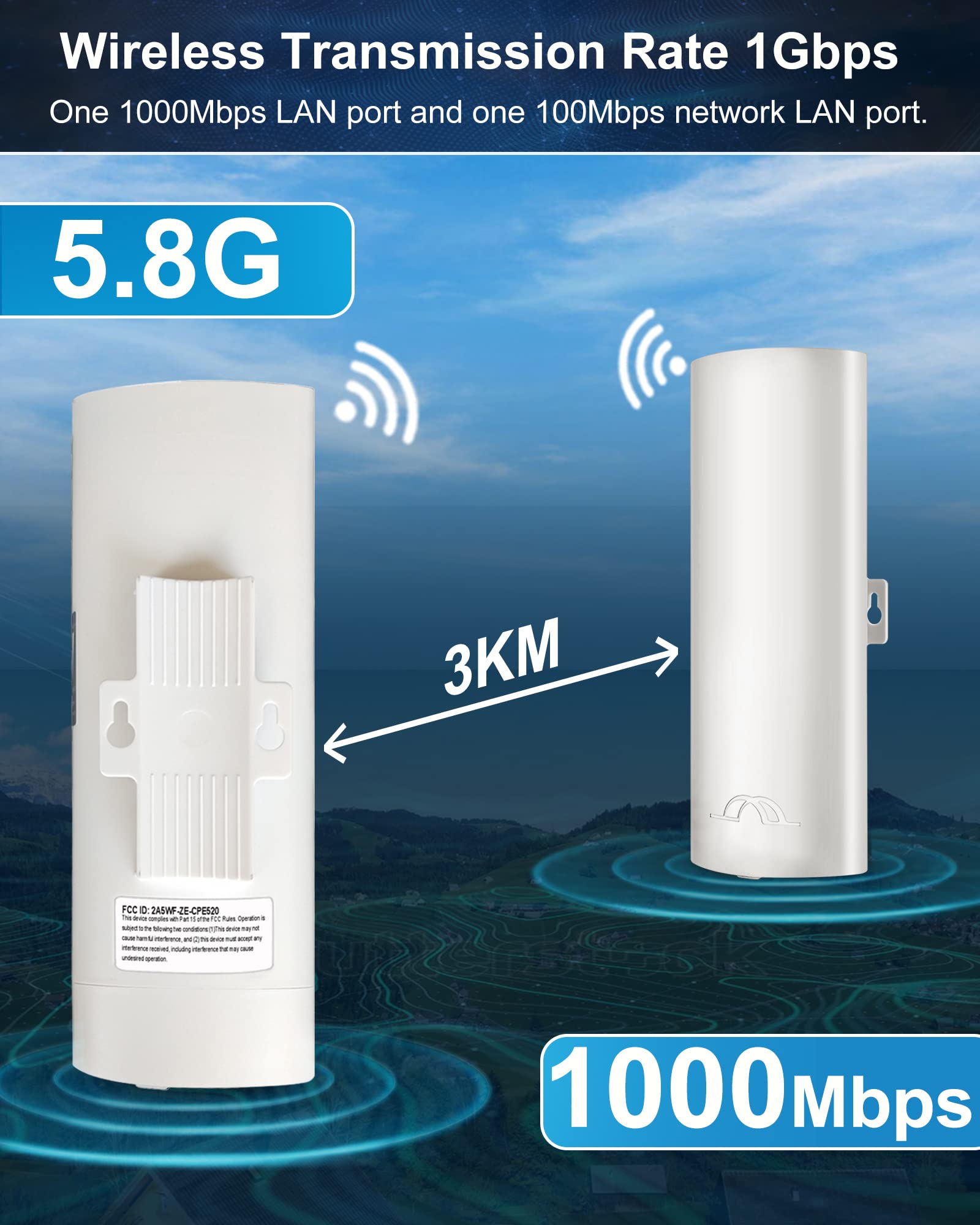

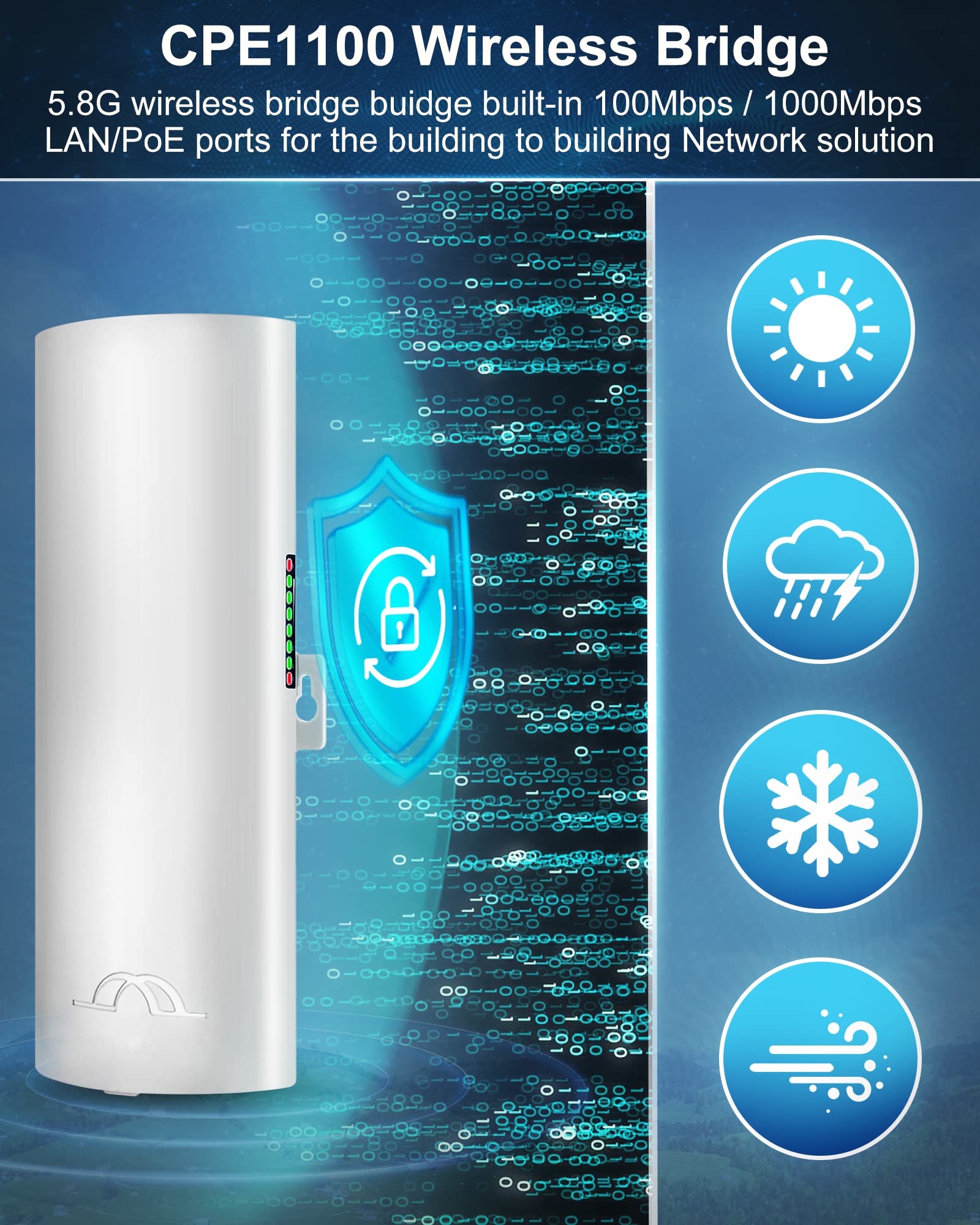

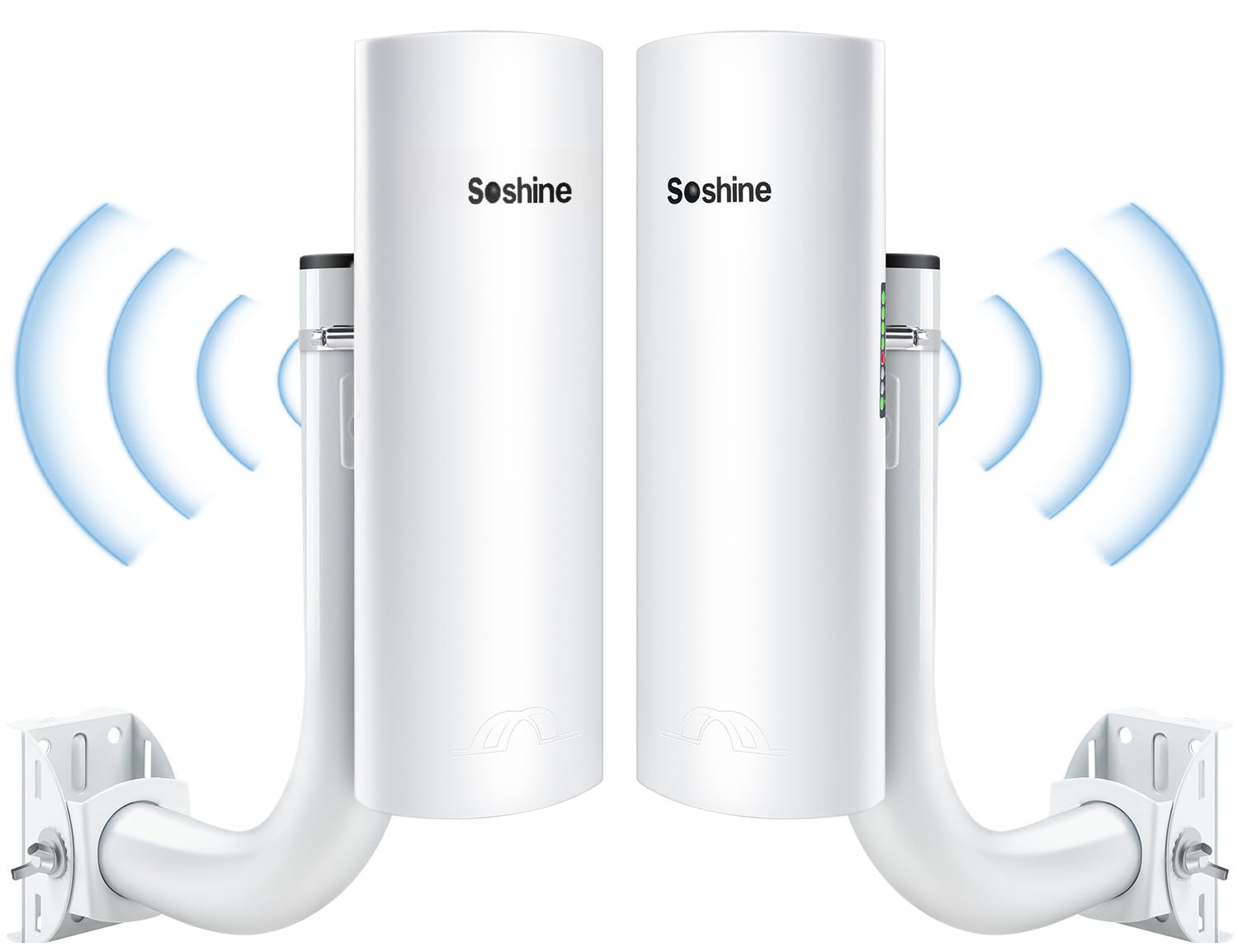

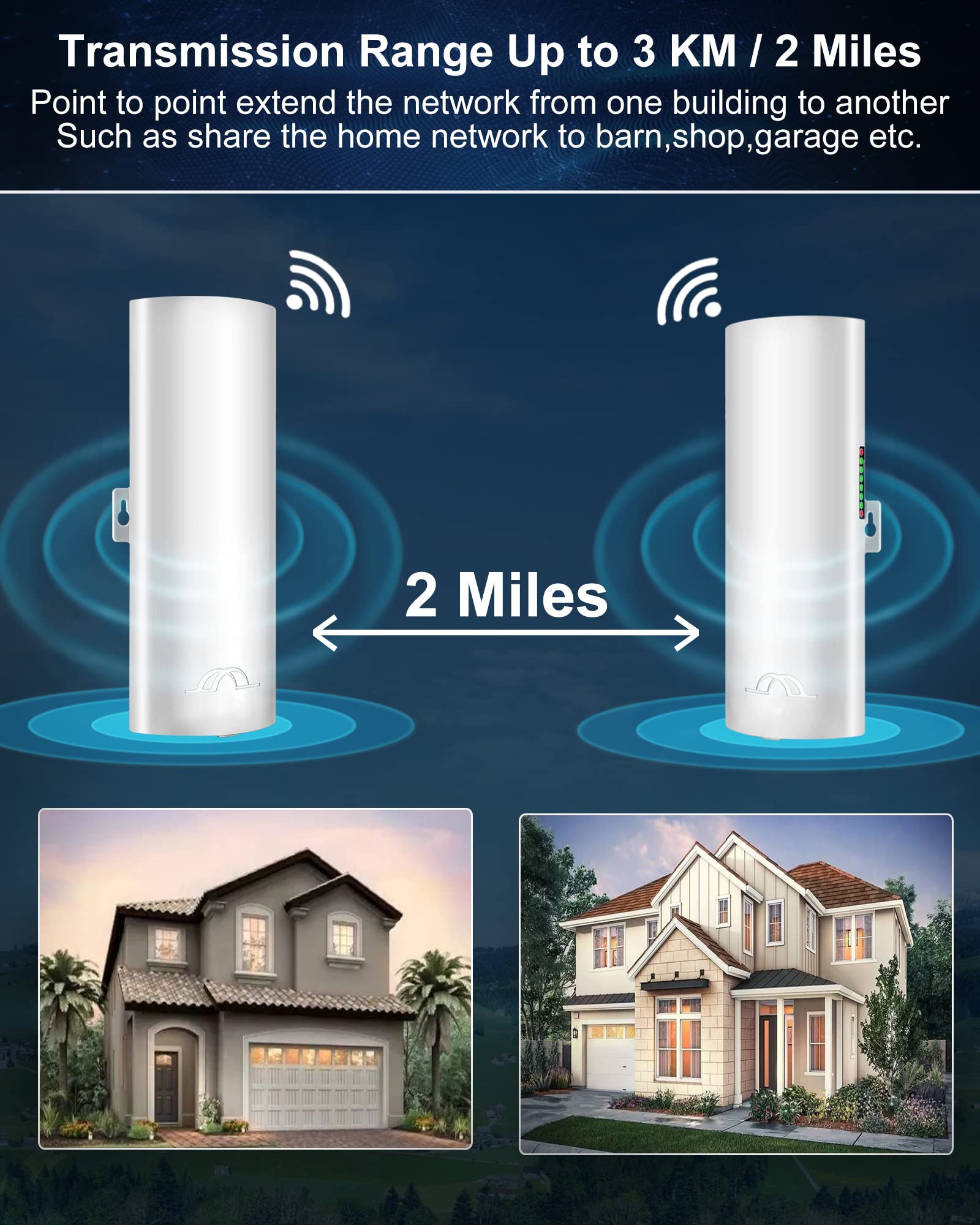

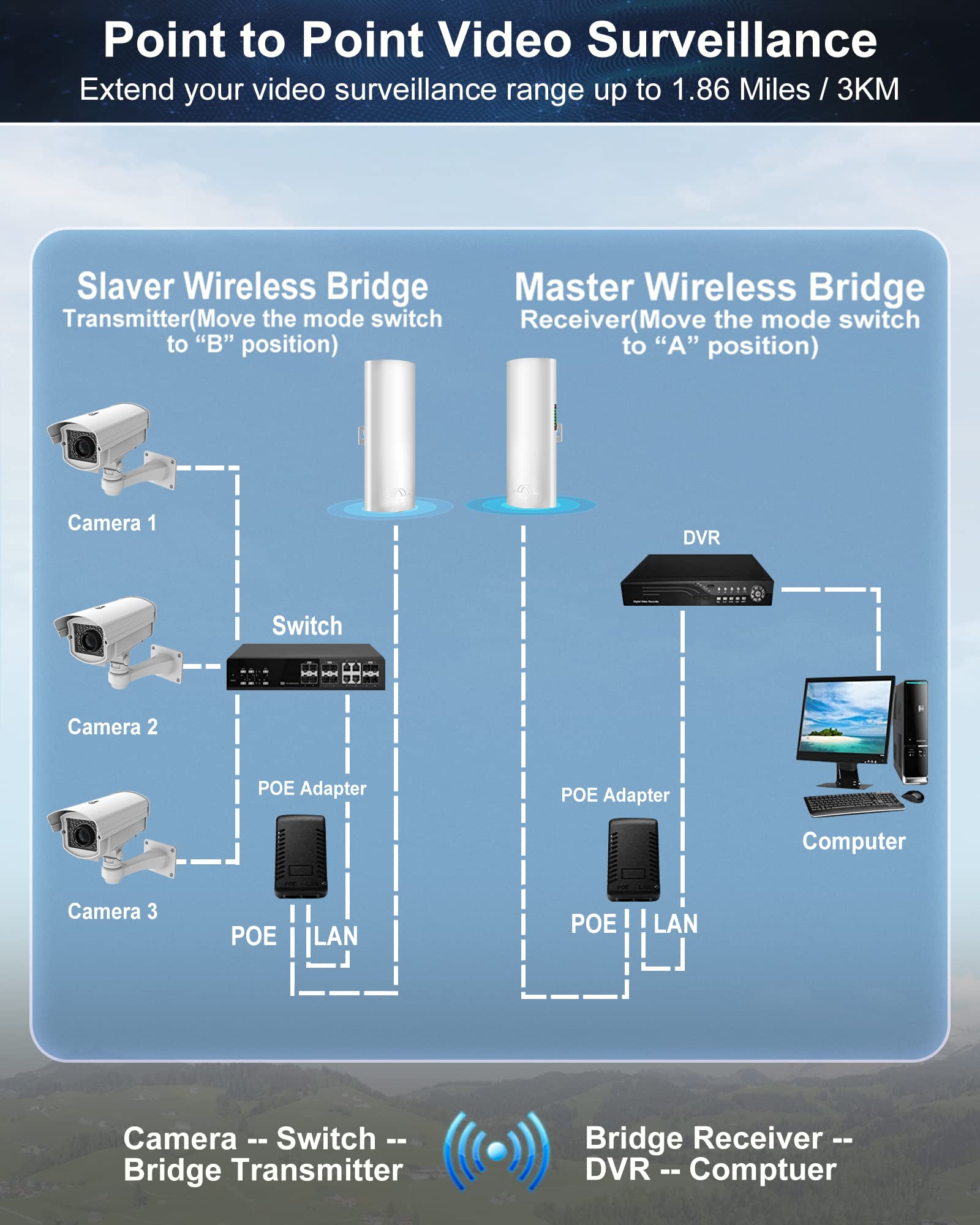

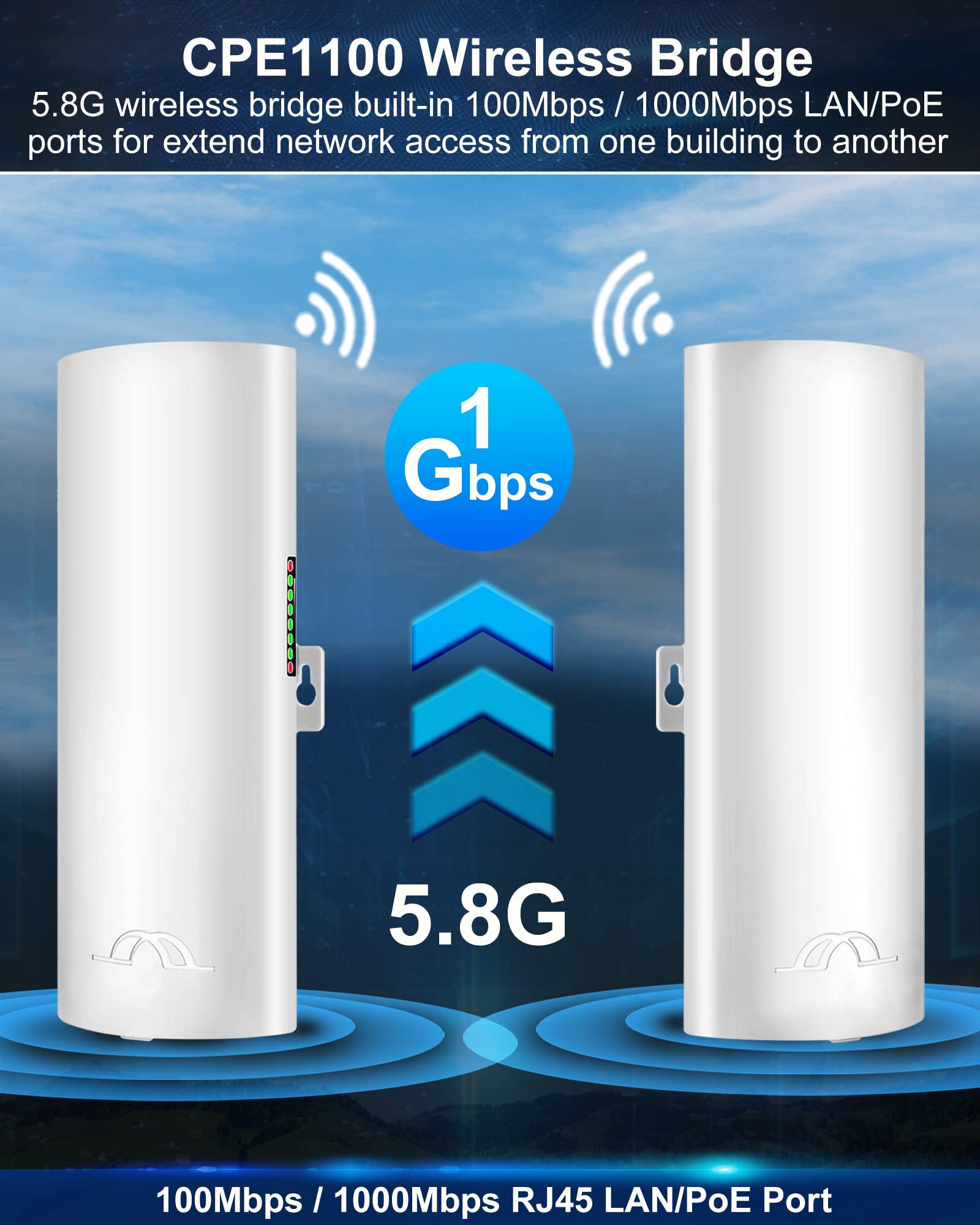

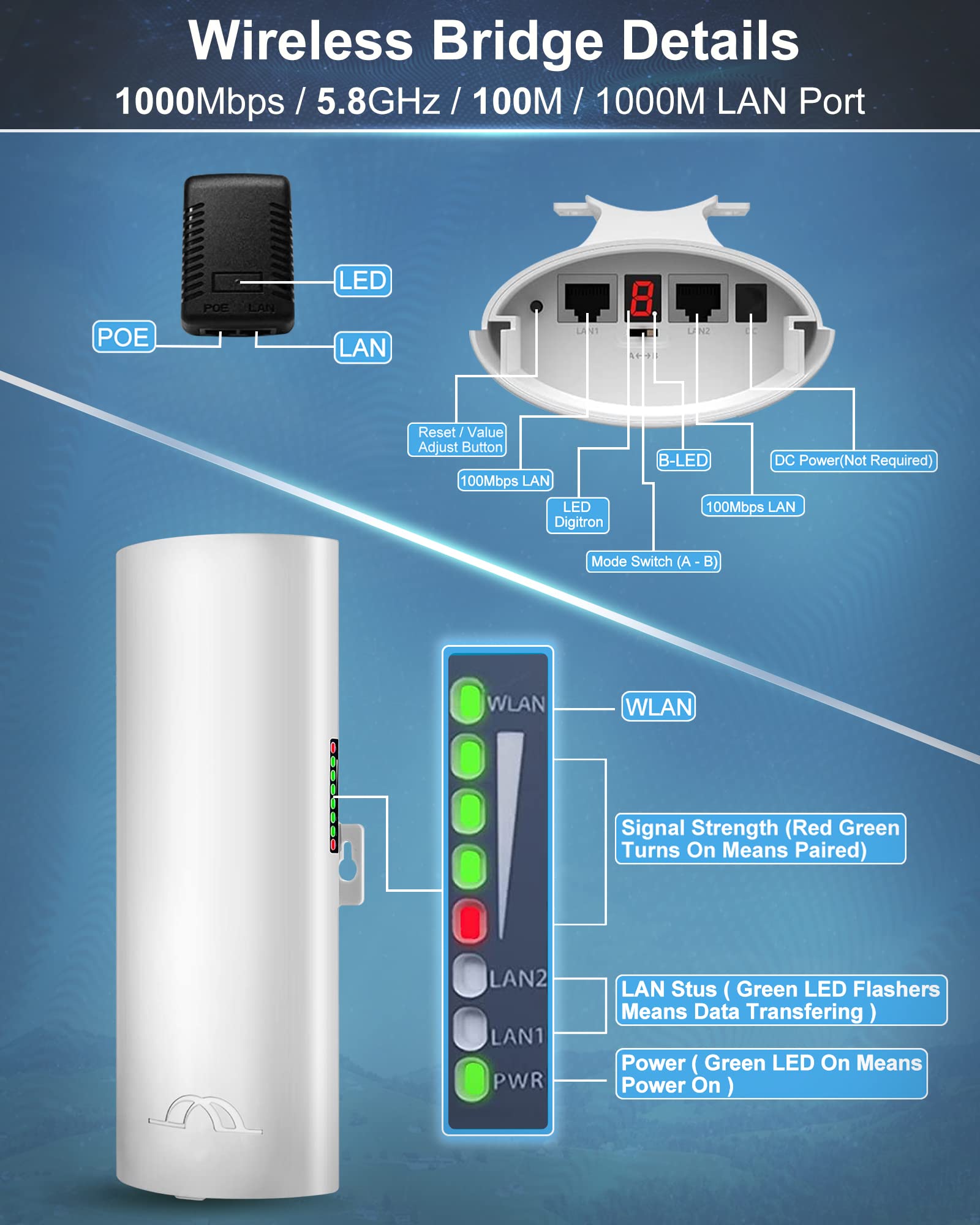

1Gbps Wireless Bridge 100Mbps Wireless Bridge 100Mbps Wireless Bridge Wall/Pole Mounting Bracket Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 1.0 out of 5 stars 1 3.1 out of 5 stars 4 4.1 out of 5 stars 88 4.1 out of 5 stars 39 Price $175.99$175.99 $98.99$98.99 $96.99$96.99 $18.98$18.98 Model CPE1100 CPE520 CPE220 Mount(2-Pack) Transmission Speed 1000Mbps 100Mbps 100Mbps no data Wireless Bands 5.8G 5.8G 5.8G no data Distance 3KM / 1.8ML 3KM / 1.8ML 2KM / 1.2ML no data Ethernet LAN Port 1 * 100Mbps + 1 * 1000Mbps RJ45 Port 2 * 100Mbps RJ45 Port 2 * 100Mbps RJ45 Port no data Wireless Bridge ✓ ✓ ✓ no data Application Outdoor Outdoor Outdoor Outdoor CPE1100 1Gbps Wireless Bridges CPE1100 5.8G Wireless Bridge Ethernet with 1000Mbps and 1.86 Miles Data Transfer Range CPE1100 wifi extender kits working at 5GHz frequency, is a pair of outdoor high power and high performance 1000Mbps wireless bridges. The bridges support Point-to-Point and Point-to-Multipoint wireless connection. It is more stable and its speed is higher and the anti-interference performance is better than the 2.4GHz wireless bridges. Moreover, it is easy to manage through the WEB interface. Function: A. The device has Auto pairing mode: simple to use, connect both bridges to the PoE power adapter to start working, it will auto pair in few minutes. Customize mode: you need to connect the bridges to the computer through the Ethernet cable, and configure the master & slave parameters, this mode suits for more experienced technician. B. You could use the device to share internet networks to a long distance, output WiFi hot point, it can also be used for transmitting the long ranges IP cameras' video stream to the control center without complicated wiring. C. While Auto pairing mode works for point-to-point access connection, the customize mode can configure the point to multiple points connection. Application: The CPE1100 kits is great to extend your home internet network to another building without wire connection, you can share your network to your barn, garage, warehouse, workshop or small store near your home, it also works for enterprises to share the internet from different offices, workshops, warehouses and etc. We offer a pair of wireless bridges in the package, you need to set one working in master mode, and another working in slave mode. Wireless Bridge Master & Slave Set: 1.Master Bridge Set Move the mode switch to "A" position, the device works in master mode 2.Slave Bridge Set Move the mode switch to "B" position, the device works in slave mode IF YOU DON'T HAVE ANY IT KNOWLEDGE, PLEASE CONSULT RELEVANT PROFESSIONALS BEFORE PURCHASING. Share your internet network from one building to another without complicated wire connection Extend your internet network to another building without wire connection, works as outdoor wireless access point 1.Bridge A Connection - Master Bridge Step 1: Connect the LAN port of the PoE Adapter to the router through an ethernet cable. Step 2: Connect the PoE port of the PoE adapter to the LAN port of the master wireless bridge by another ethernet cable. 2.Bridge B Connection - Slave Bridge Step 1: Connect the PoE port of the PoE adapter to the LAN port of slave bridge through an ethernet cable Step 2: Connect the LAN port of the PoE adapter to the LAN port of the computer or router by another ethernet cable The master bridge works in point to point mode transfers data to the slave bridge to extend the network access to another house, office, building for internet surfing. The master bridge also output WiFi hot point, such as outdoor access point, you can open the WiFi connection setting on your cellphone, or laptop, you will find the WiFI name CPE5G_5Gxxx, enter the password to get access. The access password is pre-programmed, it is different and it depends on what channel the wireless bridge is working in, but only changes the last two or three numbers. For instance: the WiFi hot point name is CPE5G_5G161, and the default password is zllinkcpe123456161, if the name is CPE5G_5G153, the password will be zllinkcpe123456153, the last three numbers of the password must match the last three numbers of the name, zllinkcpe123456 is the same, you can find the password with a little bit change for different channels. Point to point video surveillance connection diagram Transfer the video stream from the slave bridge to the master bridge, DVR receives & manages the video stream Wireless Bridge Master & Slave Set: 1.Master Bridge Set Move the mode switch to "A" position, the device works in master mode 2.Slave Bridge Set Move the mode switch to "B" position, the device works in slave mode Wireless Bridge Connection 1.Bridge A Connection - Master Bridge Step 1: Connect the LAN port of the PoE Adapter to the DVR through an ethernet cable. Step 2: Connect the PoE port of the PoE adapter to LAN port of the master wireless bridge by another ethernet cable. 2.Bridge B Connection - Slave Bridge Step 1: Connect the PoE port of the PoE adapter to the LAN port of slave bridge through an ethernet cable Step 2: Connect the LAN port of the PoE adapter to the LAN port of the switch by another ethernet cable Point to Point video surveillance can expand your video surveillance range, simply manage all your surveillance cameras in one DVR system without complicated wiring. Transfer your video surveillance network IP cameras data from another building to your DVR, it is simple to manage all the cameras in one system. Point to multiple point video surveillance connection diagram One master bridge and multiple slave bridges connection together by computer configuration to manage different places’ IP cameras in one DVR system Wireless Bridge Connection 1.Bridge A Connection - Master Bridge Step 1: Connect the LAN port of the PoE Adapter to the DVR through an ethernet cable. Step 2: Connect the PoE port of the PoE adapter to LAN port of the master wireless bridge by another ethernet cable. 2.Bridge B Connection - Slave Bridge Step 1: Connect the PoE port of the PoE adapter to the LAN port of slave bridge through an ethernet cable Step 2: Connect the LAN port of the PoE adapter to the LAN port of the IP cameras by another ethernet cable Install the slave bridges face to face to the master bridge, and the direction angle no more than 60 degrees, in this connection you need to log into the computer to configure the IP addresses for different slave bridges, please read the user manual for details. This way, you can easily transfer the network camera video streaming from different buildings to the DVR of the control center. Utilizing the point to multiple points function is great for you to monitor multiple buildings without complicated wiring. CPE1100 Product Interface The wireless bridges with high gain wifi antenna work by two modes, auto pairing mode which is pre-programed suits for green hand, customize mode suits for more experienced user. Auto pairing mode: Connect the bridge to the PoE power adapter, the Power LED turns on in green color which means the system is power on, when both bridges all are power on, it will auto pair in few minutes, the pairing and LAN status LED light all turn on in green color. the digital LED indictor displays the numeric in red color. you can press the "RST" button to change the channel to find a good frequency without interference, short press the button, the LED indicator will display the numeric "0","1","2","3"..."F" one by one, and changes in cycle, each numeric means a different frequency, please read the user manual for details. Customize mode: In this mode you need to connect it to the computer and set the different IP addresses and working modes, short pressing the "RST" button will not be functional in this mode, but you can press and hold this button for over 10 seconds to reset to factory setting. One bridge works in master mode, the other two or more bridges work in slave mode, all the bridges need to be installed face to face, for multiple points connection, the slave bridge direction angle should be no more than 60 degrees. Please adjust the slave bridge channel to match to the master bridge, both devices will be auto paired in few minutes. The bridge output WiFi hot point with WPA2-PSK encryption to keep your network in safety, you no longer need to worry about privacy leakage.
